Productdetails:
|
| Usage: | Home Appliance,Electric Bicycle,Boat | Commutation: | Brush |
|---|---|---|---|
| Speed(rpm): | 39-1500rpm | Type: | Gear Motor |
| Efficiency: | IE 1 | Construction: | Permanent Magnet |

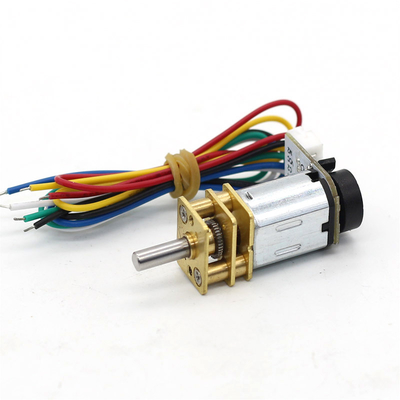

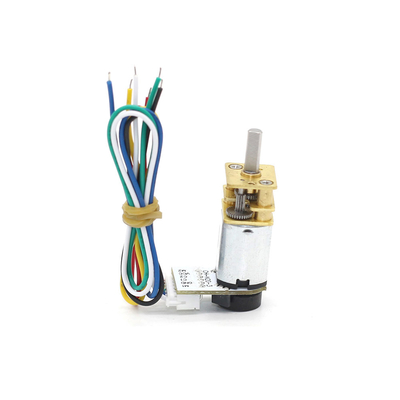

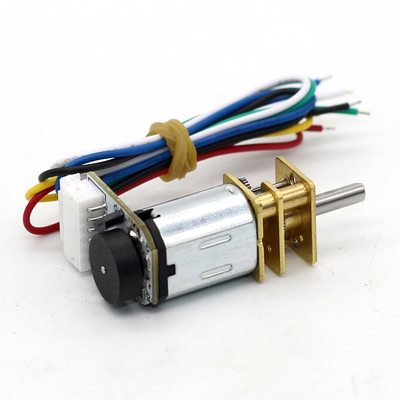

6v N20 Kleine gelijkstroommotor Encoder micro Geared Motor 39RPM tot 1500RPM 12mm versnellingsbak Volmetalen versnellingswiel
Specificatie:
Nominale spanning: DC6V
Versnelling: 3000 rpm, 1500 rpm, 500 rpm, 300 rpm, 150 rpm, 100 rpm, 71 rpm, 50 rpm, 39 rpm
Verkoppelingsmethode van de encoder:
Rood → motorvermogen + (uitwisseling kan de motor positief en negatief besturen)
Zwart → gecodeerd vermogen + (kan niet verkeerd zijn met positieve en negatieve niveaus 3.3-5V)
Geel → signaalfeedback (7 signalen per beurt)
Groen → signaalfeedback (7 signalen per beurt)
Blauw → Encoder stroomvoorziening - (positief of negatief kan niet fout zijn 3.3-5V)
Wit→Motorvoeding - (Transpositie kan de motor vooruit en achteruit bedienen)
| Model | Gegevensblad | ||||||||
| Spanning (V) | Geen lading | Verzorging | Stalling | ||||||
| JGA12-N20 | Spanningsbereik | Nominale spanning | Snelheid RPM | Stroom A | Snelheid RPM | Stroom A | Koppel KG.CM | Koppel KG.CM | Stroom A |
| 12GAN20-10 | 1.5-5 | 3 | 1000 | 0.03 | 700 | 0.08 | 0.02 | 0.30 | 0.3 |
| 12G.AN20-10 | 1.5-5 | 3 | 500 | 0.01 | 400 | 0.03 | 0.05 | 0.40 | 0.1 |
| 12GAN20-20 | 1.5-5 | 3 | 250 | 0.14 | 200 | 0.2 | 0.07 | 0.56 | 0.5 |
| 12G.AN20-30 | 1.5-5 | 3 | 200 | 0.03 | 160 | 0.07 | 0.09 | 0.70 | 0.18 |
| 12GAN20-30 | 1.5-5 | 3 | 150 | 0.01 | 120 | 0.03 | 0.10 | 0.80 | 0.23 |
| 12GAN20-50 | 1.5-5 | 3 | 100 | 0.01 | Zo. | 0.02 | 0.11 | 1.00 | 0.17 |
| 12GAN20-100 | 1.5-5 | 3 | 75 | 0.02 | 004 | 015 | 1.20 | 0.29 | |
| 12GAN20-200 | 1.5-5 | 3 | 50 | 0.01 | 40 | 0.02 | 0.20 | 1.60 | 1.0 |
| 12G.AN20-29S | 1.5-5 | 3 | 30 | 0.01 | 25 | 0.02 | 0.26 | 2.00 | 1.0 |
| 12GAN20-29S | 1.5-5 | 3 | 25 | 0.02 | 20 | 0.04 | 0.50 | 4.00 | 1.0 |
| 12G.AN20-29S | 1.5-5 | 3 | 15 | 0.01 | 10 | 0.04 | 0.50 | 4.00 | 1.0 |
| 12G.AN20-10 | 3-9 | 6 | 2000 | 0.04 | 1500 | 0.15 | 0.02 | 0.30 | 0.5 |
| 12G.AN20-10 | 3-9 | 6 | 1000 | 0.01 | SOO | 0.03 | 0.06 | 0.40 | 0.16 |
| 12GAN20-20 | 3-9 | 6 | 500 | 0.16 | 400 | 0.23 | 0.15 | 1.00 | 0.56 |
| 12G.AN20-30 | 3-9 | 6 | 400 | 0.04 | 340 | 0.07 | 0.17 | 1.40 | 0.2 |
| 12GAN20-30 | 3-9 | 6 | 300 | 0.03 | 240 | 0.04 | 0.20 | 1.60 | 0.2 |
| 12G.AN20-50 | 3-9 | 6 | 200 | 0.03 | 160 | 0.06 | 0.30 | 1.80 | 0.23 |
| 12GAN20-100 | 3-9 | 6 | 150 | 0.03 | 120 | 0.05 | 0.35 | 2.40 | 0.25 |
| 12G.AN20-200 | 3-9 | 6 | 100 | 0.01 | Zo. | 0.03 | 0.40 | 3.20 | 1.0 |
| 12G.AN20-298 | 3-9 | 6 | 60 | 0.03 | 50 | 0.05 | 0.60 | 3.20 | 1.0 |
| 12GAN20-29S | 3-9 | 6 | 50 | 0.02 | 40 | 0.05 | 1.50 | 10.00 | 1.0 |
| 12G.AN20-29S | 3-9 | 6 | 30 | 0.02 | 25 | 0.04 | 1.50 | 10.00 | 1.0 |
| 12G.AN20-10 | 6-12 | 12 | 4000 | 0.16 | 3000 | 0.34 | 0.04 | 0.60 | 0.6 |
| 12GAN20-10 | 6-12 | 12 | 2000 | 0.02 | 1600 | 0.06 | 0.12 | 1.00 | 0.35 |
| 12G.AN20-20 | 6-12 | 12 | 1000 | 0.19 | SOO | 028 | 0.30 | 2.40 | 0.6 |
| 12G.AN20-30 | 6-12 | 12 | SOO | 0.11 | 700 | 0.16 | 0.35 | 3.00 | 0.4 |
| 12GAN20-30 | 6-12 | 12 | 600 | 0.03 | 500 | 0.07 | 0.40 | 3.20 | 0.2 |
| 12GAN20-50 | 6-12 | 12 | 400 | 0.11 | 340 | 0.17 | 0.50 | 4.00 | 0.3 |
| 12GAN20-100 | 6-12 | 12 | 300 | 0.05 | 240 | 0.09 | 0.60 | 4.00 | 0.3 |
| 12G.AN20-200 | 6-12 | 12 | 200 | 0.02 | 160 | 0.04 | 1.00 | 7.00 | 1.0 |
| 12G.AN20-298 | 6-12 | 12 | 130 | o,n | 100 | 0.1S | 1.50 | 9.00 | 1.0 |
| 12GAN20-29S | 6-12 | 12 | 100 | 0.04 | 80 | 0.07 | 2.00 | 16.00 | 1.0 |
| 12G.AN20-29S | 6-12 | 12 | 60 | 0.04 | 40 | 0.06 | 2.00 | 16.00 | 1.0 |
